Solar, PV plant, solar inverters, On-grid, three phase

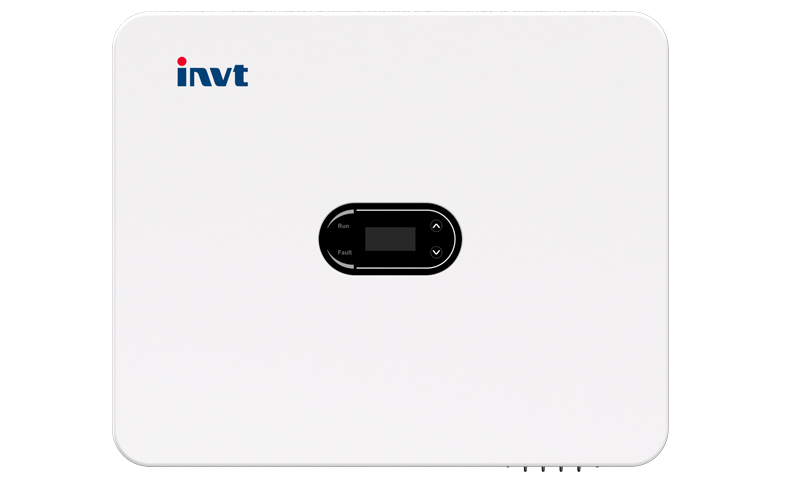

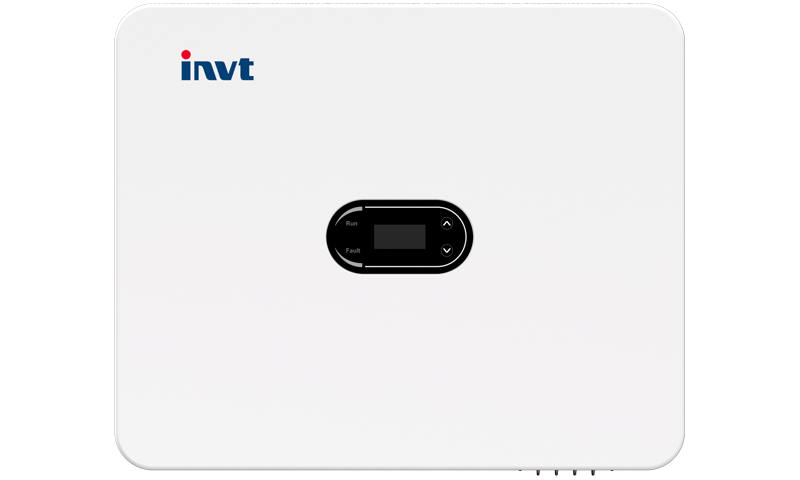

XG 30-40kW

Three-Phase On-Grid Solar Inverter

Key Feature

XG30-40kW three-phase on-grid solar inverters is suitable for medium household and commercial power stations. With simple and fashionable appearance design and intelligent data monitoring platform, XG30-40kW three-phase on-grid solar inverters create a new power consumption experience for users.
  • 3-4 MPP Trackers, high single circuit tracking accuracy, fast dynamic response.
  • 160% DC Input Oversizing
  • Maximum efficiency of 98.6%. Wide MPPT voltage range: 200V-1000V
  • Compatible with high power modules
  • Smart I-V Curve Diagnosis Function: locate PV string faults accurately and automatically detect faults
  • Intelligent Fault Detection: ac-side voltage and current waveforms real-time recorded, fast fault location
  • Support RS485/USB (WiFi/GPRS/Ethernet optional): remote monitoring and operation via PC or mobile phones
  • IP66 Protection degree: support outdoor installation
  • DC & AC Type II SPD: prevent lightning damage
  • AFCI Function (Optional): when an arc-fault is detected the inverter immediately stops operation
Specification
　 XG30KTR XG33KTR XG36KTR XG40KTR
Input (DC)
Max. Input Power 48kW 52.8kW 57.6kW 64kW
Max. Input Voltage  1100V
Start Voltage 250V
Rated Input Voltage 600V
Full-load MPP Voltage Range 500V ~ 800V
MPPT Voltage Range 200V ~ 1000V
Number of MPP Trackers 3 4
Number of String per MPPT 2
Max. Current per MPPT 26A
Max. Short Circuit Current per MPPT 32A
Output (AC)
Max. Output Current 48.3A 53A 57.8A 64.3A
Rated Output Power 30kW 33kW 36kW 40kW
Max. Output Power  33.3kVA 36.6kVA 39.6kVA 44kVA
Rated Grid Frequency 50Hz / 60Hz
Rated Grid Voltage 230Vac / 400Vac, 3L / N / PE
Power Factor >0.99 (0.8 leading~0.8 lagging)
THDi <3% (Rated Power)
Efficiency
Max. Efficiency 0.986
European Efficiency  0.985
MPPT Efficiency  0.999
Protection
DC reverse polarity protection Yes
Anti-islanding protection Yes
AC short circuit protection Yes
Residual current monitoring unit Yes
Insulation resistance monitoring Yes
Ground fault monitoring Yes
Grid monitoring Yes
PV string monitoring Yes
Surge protection Type II
AFCI protection Optional
Communication
Display LED / LCD / WiFi+App
Communication Standard：RS485
  Optional：WiFi / GPRS / Ethernet
Standard Compliance
Grid Connection Standards IEC 61727, IEC 62116, IEC 60068, IEC 61683, VDE-AR-N 4105,
EN 50549, AS/NZS 4777, CEI 0-21, VDE 0126-1-1/A1 VFR 2014,
UTE C15-712-1, NRS 097-2-1, C10/11, G98/G99
Safety / EMC  IEC 62109-1, IEC 62109-2, EN 61000-6-1, EN 61000-6-2, EN 61000-6-3
General Data
Dimensions (W x H x D) 600 x 430 x 230 mm
Weight  30kg 32kg
Operating Temperature Range  -30°C ~ +60°C
Cooling Method Smart Cooling
Protection Degree IP66
Max. Operating Altitude 4000m
Relative Humidity 0 ~ 100%
Topology Transformerless
Night Power Consumption <1W
Leave A Message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.

Related Products
Solar, PV plant, solar inverters, On-grid, three phase

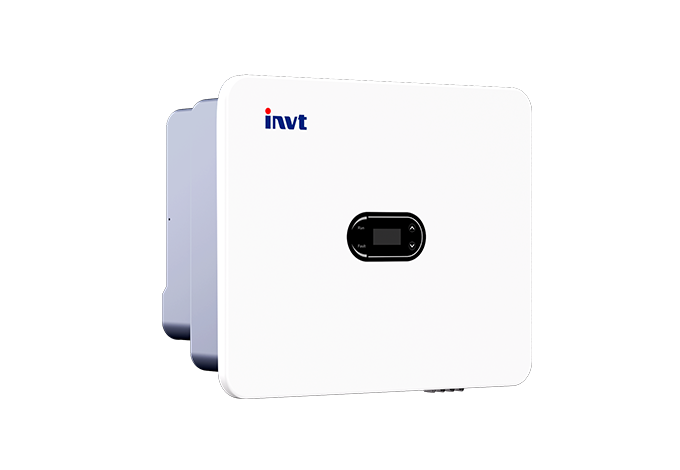

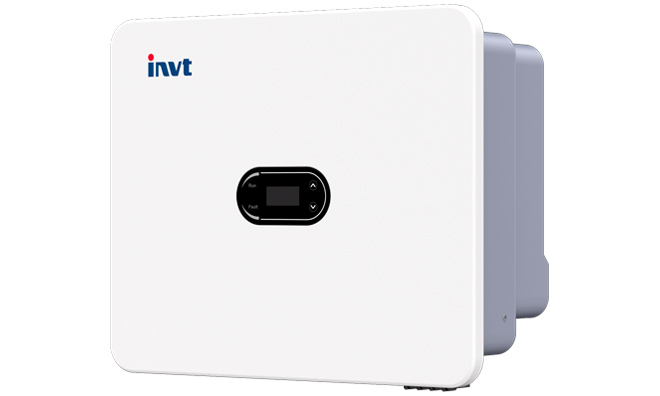

XG 17-25kW
