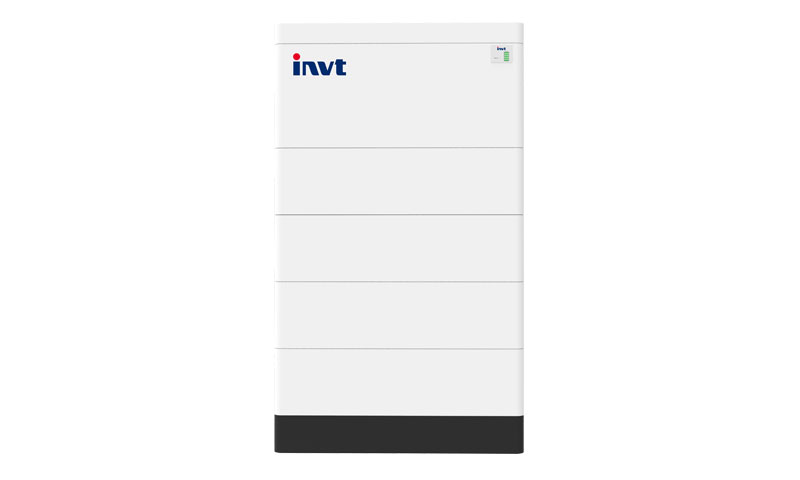

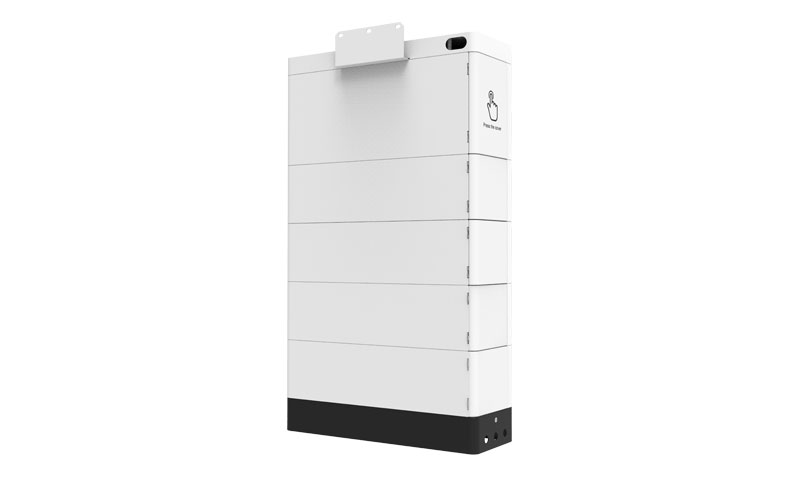

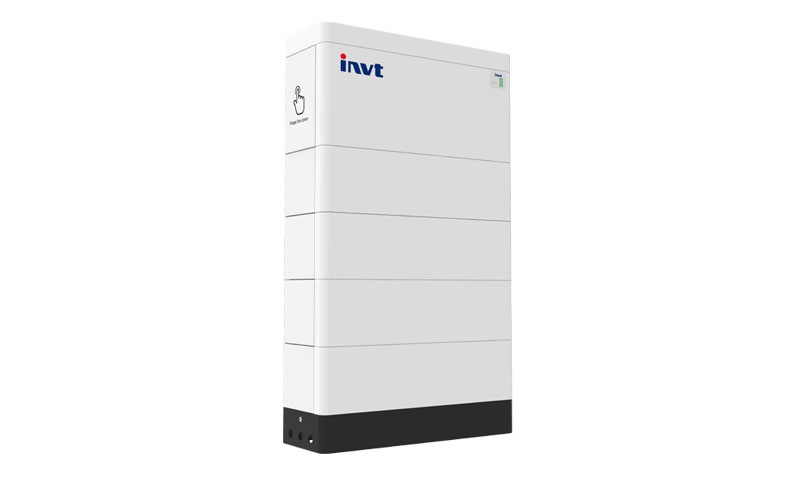

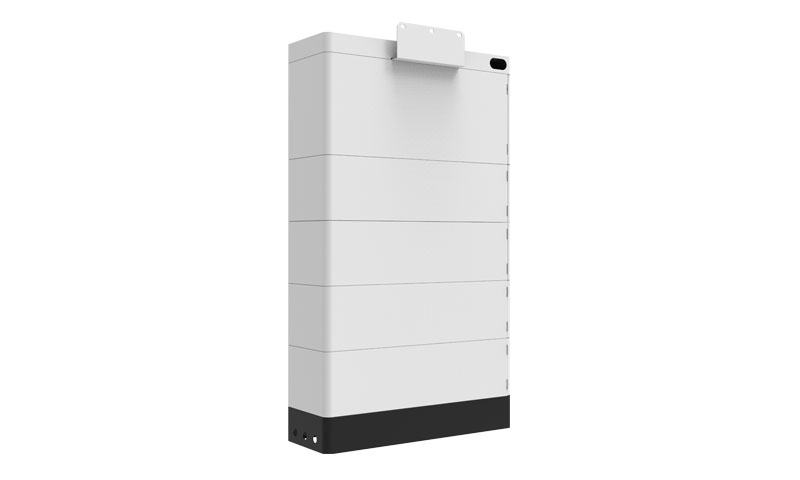

GRP2.56-SHV

High Voltage Stackable Battery

Key Feature

GRP2.56-SHV high-voltage battery features a modular design, and is compatible with the XD5-12KTR hybrid inverter, and operates in wide temperature. Equipped with LFP cells for maximum safety and life cycle.
  • Modular Design, simplifies transport and installation
  • Excellent temperature performance, temperature of discharge @-20°C ~ +60°C
  • LFP Battery: Maximum Safety, Life Cycle and Power
  • High-voltage LiFePO4 battery solution, Single module is 51.2V 50Ah 2.56kWh, 3 to 10 layers recommended


Specification
　 GRP2.56-S3HV GRP2.56-S4HV GRP2.56-S5HV GRP2.56-S6HV GRP2.56-S7HV GRP2.56-S8HV GRP2.56-S9HV GRP2.56-S10HV
Battery Parameter
Battery Cell LiFePO4
Battery System Capacity 7.68kWh 10.24kWh 12.8kWh 15.36kWh 17.92kWh 20.48kWh 23.04kWh 25.6kWh
Module number 3 4 5 6 7 8 9 10
Nominal Capacity 50Ah
Depth of Discharge 90%
Nominal Voltage 153.6V 204.8V 256V 307.2V 358.4V 409.6V 460.8V 512V
Voltage Range 129.6～168.48
Vdc		 172.8~224.64
Vdc		 216~280.8
Vdc		 259.2~336.96
Vdc		 302.4~393.12
Vdc		 345.6~449.28
Vdc		 388.8~505.44
Vdc		 432~561.6
Vdc
Nominal Charge/
Discharge Current		 50A
Dimension
(W x H x D)		 600x820 x210mm 600x980x210
mm		 600x1140x210
mm		 600x1300x210
mm		 600x1460x210
mm		 600x1620x210
mm		 600x1780x210
mm		 600x1940x210
mm
Weight 102.5Kg 129Kg 155.5Kg 182Kg 208.5Kg 235Kg 261.5Kg 288Kg
Installation Stacked
Temperature of Charge 0 ~ 55℃
Temperature of Discharge -20℃ ~ +60℃
Protection Degree IP65
Communication Port RS485, CAN
Display LED
Operation Humidity 5% ~ 95%
Max. Operating Altitude 2000m
Cycle Life 6000@80% DOD, 25℃, 0.5C
Certification CE, CB, UN38.3, MSDS
