XD3-6KTL-AIO

Energy Storage System

Key Feature

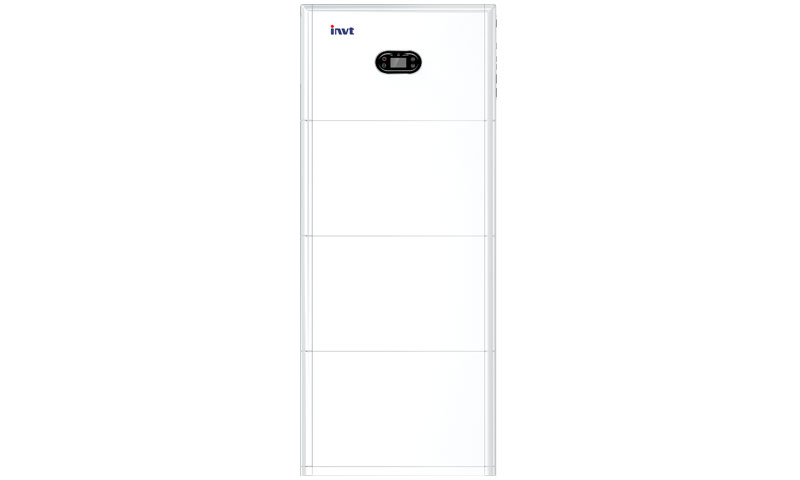

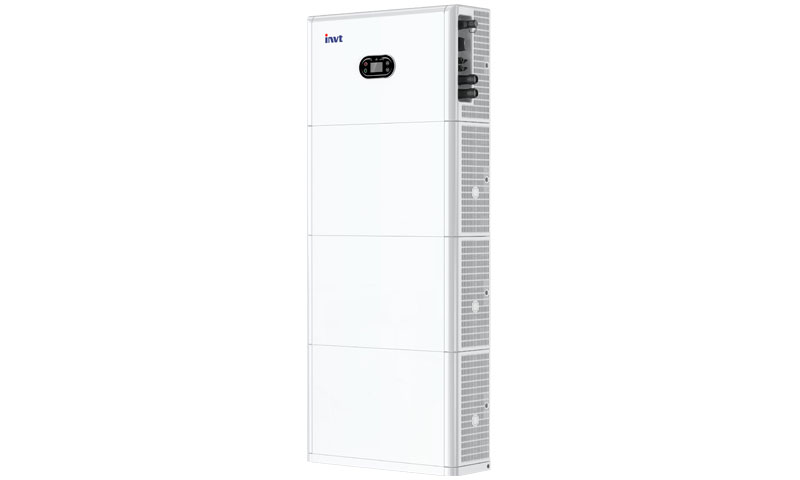

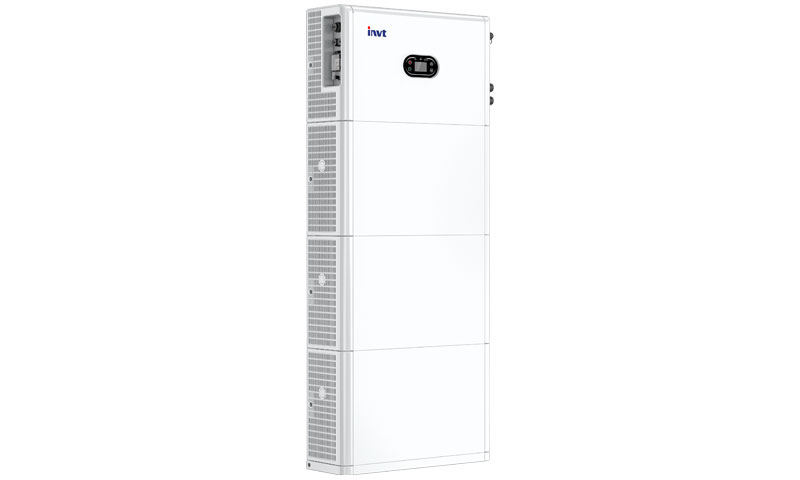

The XD3-6KTL-AIO energy storage system integrates a solar inverter and batteries in a dual-side design. It has an easy-to-install, quick-stack design that is also space-saving and sleek. The system has a modular design of 5.12kWh, which supports expansion and customization. It also has smart connectivity and intelligent power management to enable self-generation and self-consumption, shaving peaks and filling valleys, and maximizing the benefits of using electricity, which is the preferred choice for the installed PV system household with the addition of energy storage.
  • Max. Efficiency 97.5%
  • 2 MPP trackers, 160% DC input oversizing
  • Max. charging/discharging current 100A for faster power backup
  • Max. PV input current 16A, compatible with high-power modules
  • DC & AC Type II SPD: prevent lightning damage
  • High ingress protection rating of IP65: supports outdoor installation
  • Smart I-V Curve Diagnosis Function: locate PV string faults accurately and automatically detect faults
  • EPS Switching Under 10ms, UPS-level switching
  • Easy-install, quick-stack design
  • Modular design allows for scalability and customization
  • Multiple working modes and support parallel access to PV, batteries, normal loads, EV chargers, and grids
  • Support RS485/CAN/WiFi/4G/LAN/Bluetooth optional: remote monitoring and operation via PC or mobile phones


Specification
Technical Data　
Input（Battery）
Battery Type LFP
Battery Energy 5.12kWh 10.24kWh 15.36kWh
Number of Batteries 1 2 3
Dimension (W x H x D) 640 x 875 x 210 mm 640 x 1250 x 210 mm 640 x 1625 x 210 mm
Battery Voltage 51.2V
Voltage Range 43.2V ~ 56.16V
Max. Charging / Discharging Current 100A
Inverter Module XD3KTL-AIO XD3K6TL-AIO XD4KTL-AIO XD4K6TL-AIO XD5KTL-AIO XD6KTL-AIO
Input（PV）　
Max. PV Input Power 4.5kW 5.4kW 6kW 6.9kW 7.5kW 9kW
Max. PV Input Voltage 600V
Start-up Voltage 100V
MPPT Voltage Range 100V~550V
Number of MPP Trackers / String per MPPT 2 / 1
Max. PV Input Current 16A
Max. Short Circuit Current per MPPT 20A
Output（AC）　
Rated Output Power 3kW 3.68kW 4kW 4.6kW 5kW 6kW
Max. Output Power 3.3kVA 3.68kVA 4.4kVA 4.6kVA 5.5kVA 6kVA
Max. Output Current 15A 16A 20A 20.9A 22.7A 26.1A
Rated Voltage 230V
Rated Frequency 50Hz / 60Hz
THDi(@Rated Power) ＜3%
Power Factor 0.8 leading~0.8 lagging
Output（EPS）　
Max. Output Power 3kVA 3.68kVA 4kVA 4.6kVA 5kVA 6kVA
Max. Output Current 15A 16A 20A 20.9A 22.7A 30A
Peak Output Power, Time 4.5kW, 10s 5.5kW, 10s 6kW, 10s 6.9kW, 10s 7.5kW, 10s 7.5kW, 10s
Rated Voltage, Frequency 230V, 50Hz
THDv (@Rated Power) ＜3%
Switch Time ＜10ms
Efficiency　
Max. Efficiency 97.50%
EU Efficiency 97.20%
Max. Battery Charge/Discharge Efficiency  95.00%
Protection　
Protection DC Reverse Polarity Protection, Insulation Resistance Monitoring, Group Fault Monitoring, Over Current / Over  Voltage Protection, Battery Soft Start Protection
AFCI Protection Optional
Surge Protection Type II
General Data　
Operating Temperature Range -10℃～+40℃
Self-consumption ＜10 W
Protection Degree IP65
Relative Humidity 0 ~ 100%
Display LCD
Communication RS485 / CAN / WIFI / 4G / LAN / Bluetooth
Max. Operating Altitude 4000m
Cooling Method Natural
