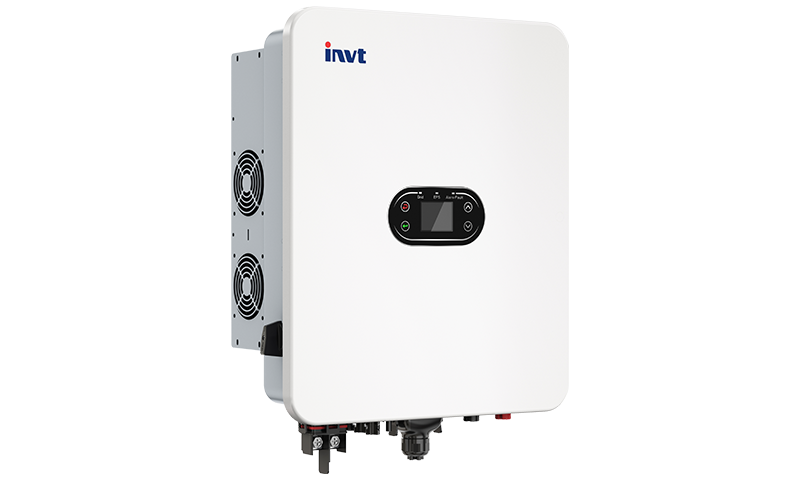

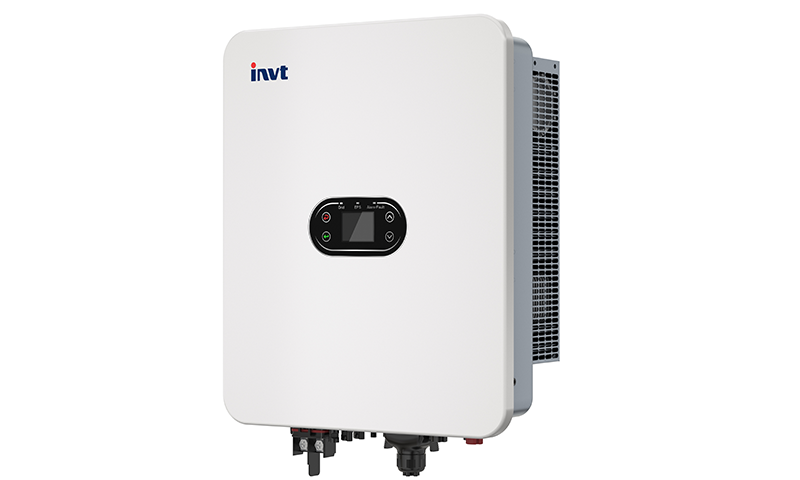

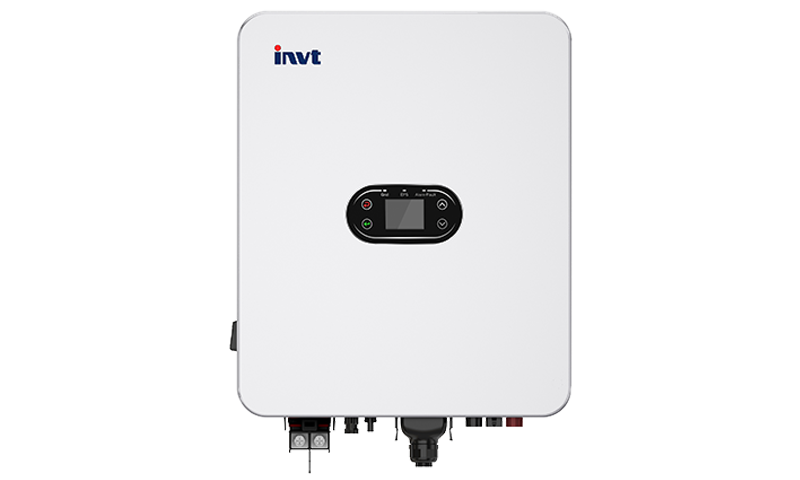

XD 7-10KTL

Single Phase Hybrid Inverter

Key Feature

The XD7-10KTL single-phase energy storage inverter features a compact, lightweight design, making installation simple and versatile across various setups. With a maximum string current of 20A, it supports high-power modules, and its EPS switching time is under 10ms. It is compatible with both lithium and lead-acid batteries. Additionally, it comes with a standard diesel generator interface, supporting generator and Smart load connections, making it ideal for diverse home energy storage applications.
  • Max. Efficiency 98%
  • 2 MPP Trackers, 160% DC Input Oversizing
  • Max. PV Current 20A,Compatible with High Power Modules
  • 200% Peak Output Power at EPS Mode
  • IP66 Protection Degree
  • SPD Type II:DC & AC
  • Support AFCI Function(Optional)
  • Support Smart I-V Curve Diagnosis Function
  • EPS Switching Time < 10ms
  • Compatible with Lithium & Lead-acid Batteries
  • Support Work in Parallel Mode
  • Support Diesel generator & Smart Load Connection


Specification
　 XD7KTL XD8KTL XD10KTL
Input(PV)
Max. PV Input Power 11.2kW 12.8kW 16kW
Max. PV Input Voltage 600V
Start-up Voltage 100V
MPPT Voltage Range 100V-550V
Number of MPPT Trackers 2
Number of String per MPPT 2/1
Max. PV Input Current 40/20A
Output(AC)
Rated Output Power 7kW 8kW 10kW
Max. Out Active Power 7.7kW 8.8kW 11kW
Max. Output Current  35A 40A 50A
Rated Voltage 230V
Rated Frequency 50Hz / 60Hz
THDi(@Rated Power) <3%
Power Factor 0.8 leading~0.8lagging
Battery
Battery Type Lithium, Lead-acid
Battery Voltage Range 40~60V
Max. Charge/Discharge Current 160A 190A 220A
Output(EPS)
Max. Output Power 7.7kVA 8.8kVA 11kVA
Max. Output Current 35A 40A 50A
Peak Output Power, Time 14kW,10s 16kW,10s 18kW,10s
Rated Voltage 230V
THDv(@Rated Power) < 3%
Switch Time <10ms
Efficiency
Max. Efficiency 98.00%
European Efficiency 97.50%
Battery Charge / Discharge Efficiency 97.00%
Protection
DC Reverse Polarity Protection Yes
Insulation Resistance Monitoring Yes
Ground Fault Monitoring Yes
Over Current / Over Voltage Protection Yes
Battery Soft Start Protection Yes
AFCI Protection Optional
Surge Protection Type II
Communication
Display LCD
Communication RS485/CAN/WIFI/4G/Bluetooth
General Data
Dimension(WxHxD) 440mm*530mm*250mm
Operating Temperature Range -30℃~+60℃
Self-consumption <10W
Topology High Frequency Insolation(For Battery)
Protection Degree IP66
Relative Humidity 0~100%
Max. Operating Altitude 4000m
Cooling Method Smart Forced Air Cooling
