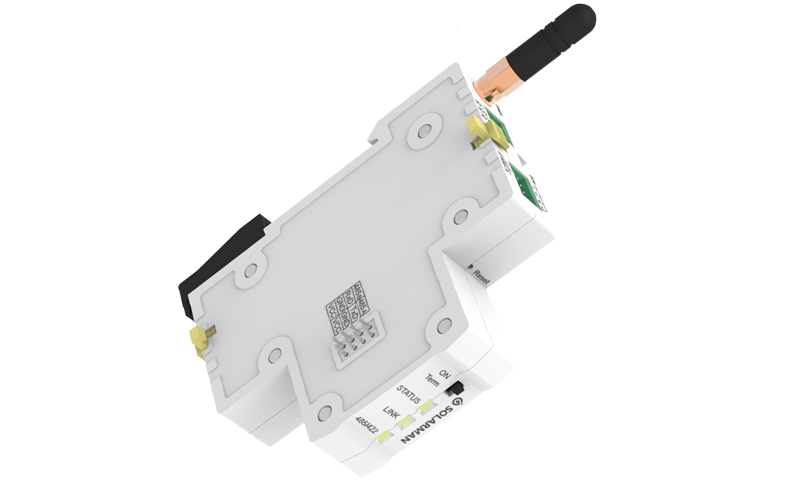

DIN-Rail Logger

Key Feature

By collecting operating status and power generation of inverter,meter and other devices,DIN-Rail logger can run a long-term and efficient monitoring of PV system. Logger can connect to multiple devices via RS485/RS 422/RS232 and other interfaces.Meanwhile,remote monitoring cloud platform(SOLARMAN Portal) provides powerful data support for the logger.Logger sends the data to the monitoring platform via WiFi/Ethernet/GPRS.The real-time status and historical data can be displayed with graphs,enabling intuitive and clear understanding of PV system.
  • Standard DIN-Rail Mount: suitable for 35mm DIN-Rail mount
  • Data Resuming:ensure data integrity
  • Remote upgrade and system debugging, easy for O&M
  • Real-time alerts with timely notification, ensuring fast troubleshoot
Remote Communication Interface WiFi
Working Frequency 2.142GHz ~ 2.484GHz
No.of Connections 1-10
Ethernet 10/100M (Adaptive Network)
Working Voltage DC 4.7-15V
Working Power 1W
Local Communication RS485/RS422/RS232
Serial Communication Rate 1200-115200bps Configurable
Data Uploading Interval Default: 5 mins (1-15 mins Configurable)
Memory 2M Fash (512K-16M Optional)
User Configuration AT+Instruction Set,
Remote Server
SIM Card -
Antenna GPRS Small Antenna
(Sucker Antenna Optional)
Working Temperature -40℃ ~ +85℃
Working Humidity < 90% (non-condensation)
Dimension (W x H x D) 76 x 91 x18 mm
Installation Method 35mm DIN-Rail
