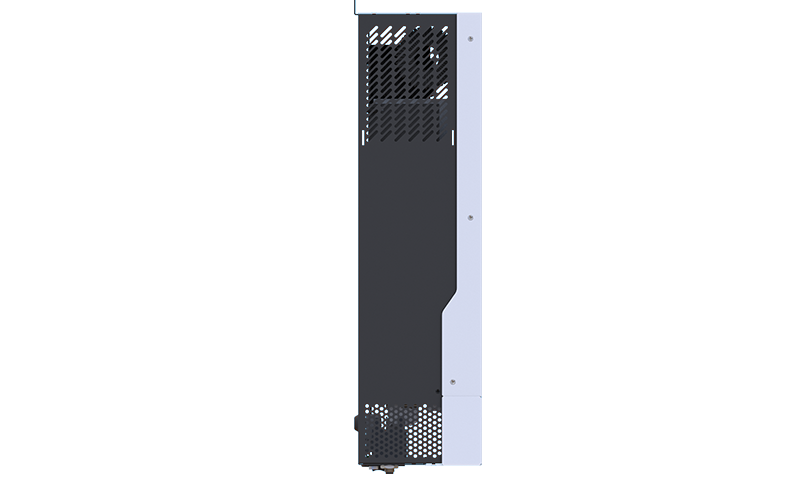

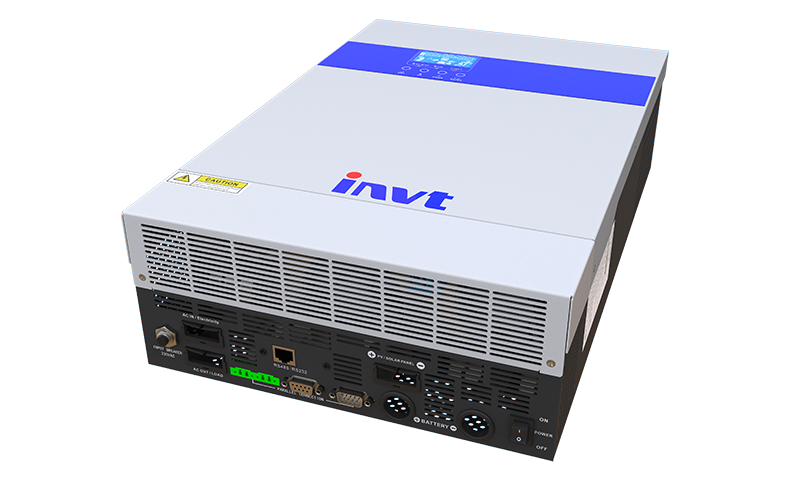

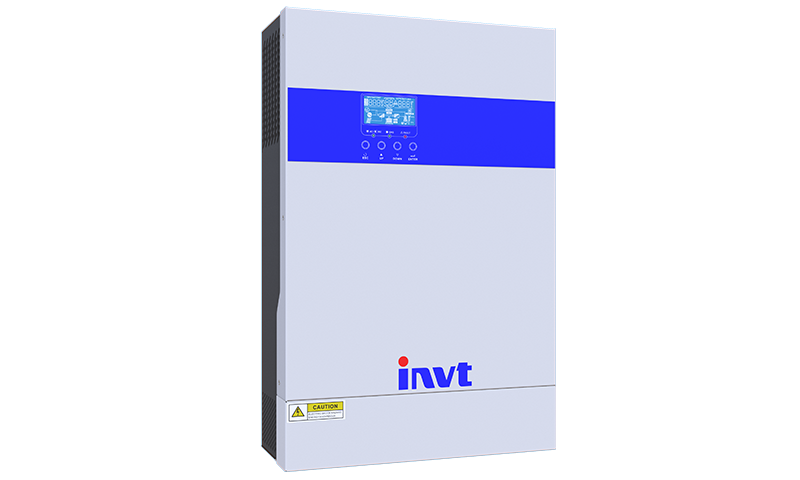

XN 5548 & 5548-P

Single Phase Off-Grid Solar Inverter

Key Feature

XN5548 & 5548-P single-phase off-grid solar inverter is suitable for non-power area, nomadic area, communication base station, power instability area, island, border post, scenic area management office, newspaper booth, battery pack matching of battery manufacturer, etc. Equipped with LED display, XN5548 & 5548-P single-phase off-grid solar inverter supports RS232/RS485, with exquisite design
  • Built-in 110A MPPT solar charge
  • Wide PV input voltage range
  • Over load / over temperature / short circuit protection
  • Smart battery charger design, optimize battery performance
  • Support grid / generator input
  • Compatible with lithium battery
  • Up to 6 units in parallel (P model)
  • Multiple charging voltage levels for different batteries
  • Multiple work mode, support AC priority, solar priority
  XN5548 XN5548-P
Rated Power 5500VA/55000W
Voltage 230Vac
Selectable Voltage Range 170Vac~280Vac (for personal computers)
90Vac~280Vac (for home appliances)
Frequency Range 50Hz / 60Hz (auto sensing)
AC Voltage Regulation (Batt. Mode) 230Vac±5%
Surge Power 11000VA
Overload Capability 5s@≥150% load; 10s@110%~150% load
Efficiency (Peak) 94%
Transfer Time 10ms (for personal computers); 20ms (for home appliances)
Waveform Pure Sine Wave
Battery Nominal Voltage 48Vdc
Floatingg Charge Voltage 52Vdc
Overcharge Protection 62Vdc
Solar Charger & AC Charge
Solar Charger Type MPPT
Maximum PV Array Power 6000W
MPPT Range 120Vdc~450Vdc
Maximum PV Array Open Circuit Voltage 500Vdc
Maximum Utility Charge Current 80A
Maximum Solar Charge Current 110A
Protection AC Short Circuit Protection, AC Over Current Protection, Over Temperature Protection, etc.
Display LCD

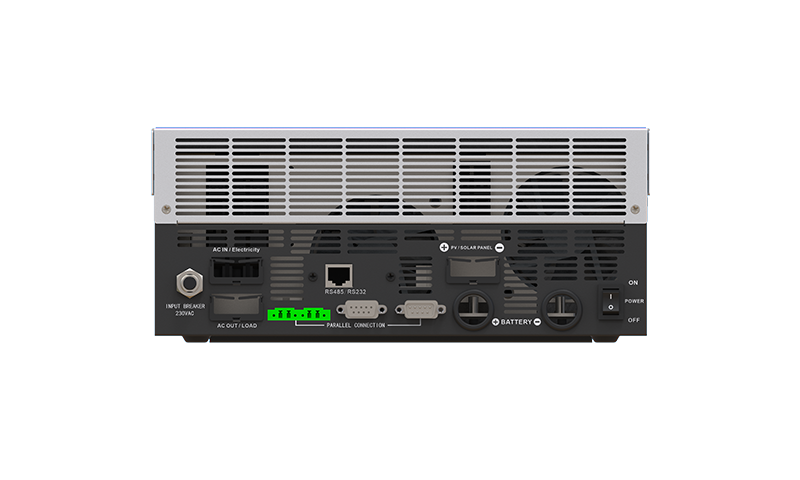

Communication Port RS232 / RS485
Standard Compliance
Safety/ EMC CE
General Data
Dimension (W x H x D) 472 x 297 x 133 mm
Net Weight 10.5kg
Protect Degree IP21
Operating Temperature  0°C ~ +55°C
Storage Temperature  -15°C ~ +60°C
Humidity 5%~95% (non-condensing)
Parallel No Up to 6pcs
